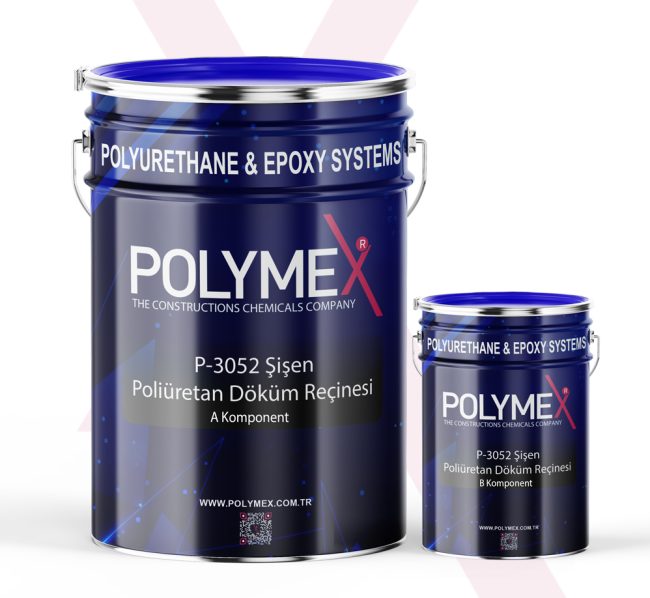

P-3052 Intumescent Polyurethane Casting Resin

It is a two-component, solvent-free, polyurethane resin-based, one hundred percent void-filling, swelling insulation and casting resin.

Category:
P-3052 Intumescent Polyurethane Casting Resin
Advantages
  • Polyurethane based
  • High insulativity
  • Provides job security
  • Does not wear out easily
  • Non-slip feature
  • Resistant to chemicals
  • Resistant to physical stress and ground movements
  • Long service life
  • Seamless structure
  • Provides Electrical Insulation
  • Provides one hundred percent swelling
Features: Şişen Poliüretan  Döküm Reçinesi Protolin Poliüretan Döküm Reçine Değişik Şartlarda ve Muhtelif Sıcaklıklarda Elektriki Geçirimsizliği ve Dielektrik Sabit Sayısı Yüksektir. Aşınmaya Mukavim, Asit Alkali ve Diğer Kimyevi veya Korrozif Maddelere Karşı Dayanıklıdır. Düşük Sıcaklıklarda Önemli Bir Hacim Değişikliği Göstermeden Sertleşir. Katalizörler Sayesinde Kuruma Zamanı Kısaltılabilir. Elektrik kumanda odalarında kabinlerinde elektrik yalıtımında mükemmel yalıtkan malzemedir.Aşınma mukavim asit-alkali ve diğer kimyevi ve korrozif maddelere karşı dayanıklıdır. Düşük sıcaklıklarda da önemli bir hacim değişikliği göstermeden sertleşir. Katalizörler sayesinde kuruma zamanı kısaltılabilir. Kesinlikle solvent yoktur. Şişen Poliüretan Döküm Reçinesi
Color Cream, tile or desired color
Dielectric coefficient 360 kV AC (VDE 0303/4
Flash Point Does not cause glare. Solvent free.
Start of Curing 25 Minutes or desired duration
Kuruma Initial drying: 1 hour Final drying: 4 hours
Shore a Hardness Hardness:80-85
Viscosity (25 Oc) mPas                   3500-4500                 170-300
Application Temperature 5-35 oC
Density ( 20 oC) A=1,30±0,1 B:1,22±0,05
Mixing Ratio A/B:
Binding Substance Polyurethane Casting Resin
Temperature resistance -45/ +280 oC
Mode of application Hand Casting -Polyurethane machine casting
  ELECTRICAL PROPERTIES
Features Conditions Resin   Unit Method
Dielectric constant 50 Hz - 25°C 4,5 - 4,7 –     IEC 250
50 Hz - 50°C 5,5 - 5,7
Dağılım faktörü Tang. d 50 Hz - 25°C 3,3 - 3,5   %
50 Hz - 50°C 9,0 - 9,3
Volume resistance 25°C 5×1014 Ωxcm ASTM D 257-07
50°C 2×1013
Dielectric strength 50 Hz - 2 mm 25- 30 kV/mm ASTM D 149-09
Dielectric coefficient V V /Mil 460 ( VDE 0303/4
Thermal Conductor W W/M-K.43
Areas of Use: Polyurethane Casting Resin in transformers, magnets for filling, insulators, sanding Polyurethane Casting Resin In the electrical cable industry: It is used in the casting of cable headers and joint exemptions and in the insulation of end connections. It is a casting resin used in submersible pumps, aquarium filters, to protect the electrical components in the motor from water. It prevents vibration in the pump. It is used in fuse and mold manufacturing and also used in LED bars and FR modulator. It is used in electronic and electrical systems. It is also used as an insulator in underground and above ground electrical high voltage connection systems. Intumescent Polyurethane Casting Resin Implementation: Intumescent Polyurethane Casting Resin The surface to be applied must be dry and clean. It should be cleaned from mineral oil, dirt, rust and burrs. During application, the surface and ambient temperature should be min. 8 oC Max. 30 oC olmasına dikkat edilmelidir. Ambalaj güneş altında bırakılmamalı, dondan ve rutubetten kesinlikle korunmalı ayrıca yabancı malzeme ilave edilmemelidir. Poliüretan Döküm Reçinesi Dielektrik Katsayısı :360 kV AC ( VDE 0303/4 Polymex-3052;Poliüretan Döküm Reçine   B Bileşeni, A Bileşeni içine boşaltılır. Homojen bir karışım sağlanıncaya kadar karıştırılır. Kullanılacak yer veya zemin madeni yağ, kir, pas, çapaklardan arındırılmalıdır.  Hazırlanan karışım 30 ile 40 dakika arasında kullanılmalıdır. Malzemenin tamamı kullanılmayacaksa etikette yazılı karışım oranına göre malzeme hassas olarak tartarak kullanılmalıdır. Şişen Poliüretan  Döküm Reçinesi Storage and Shelf Life: P-3052-Polyurethane Casting Resin Storage time under normal conditions (+20 oC), in a dry environment with the lid closed for 2 years. Production date is on the label. Packages should be stored upright. P-3052-Swelling Polyurethane Casting Resin Packaging: 5.kg-20.kg-30.kg-60.kg-100.kg- in sets of 250 kg.
Safety Precautions: Avoid skin contact, in case of contact, wash with plenty of water and soap. Empty packages cannot be used as food storage containers. Direct inhalation should be avoided, masks, goggles and gloves suitable for chemical inhalation should be used. Attention !!! : R20 Harmful if inhaled. R36 / 37 / 38 Irritating to eyes, respiratory system and skin. Suitable Protective Clothing and Protective Gloves should be used while working. P-3052-Swelling Polyurethane Casting Resin. Notes All technical data contained in this product data sheet are based on laboratory experiments. Actual data may vary due to conditions beyond the control of AŞY POLYMEKS KİMYA SAN TİC LTD ŞTİ.

Description

Fluidized casting resin mixing ratio is specified in the technical document. Intumescent Polyurethane Casting Resin One-to-one intumescent casting resin. Note: If 5 cm is poured into the container of the measurement poured in the first place, it has the ability to swell 10 cm when hardened. P-3052-Swelling Polyurethane Casting Resin
